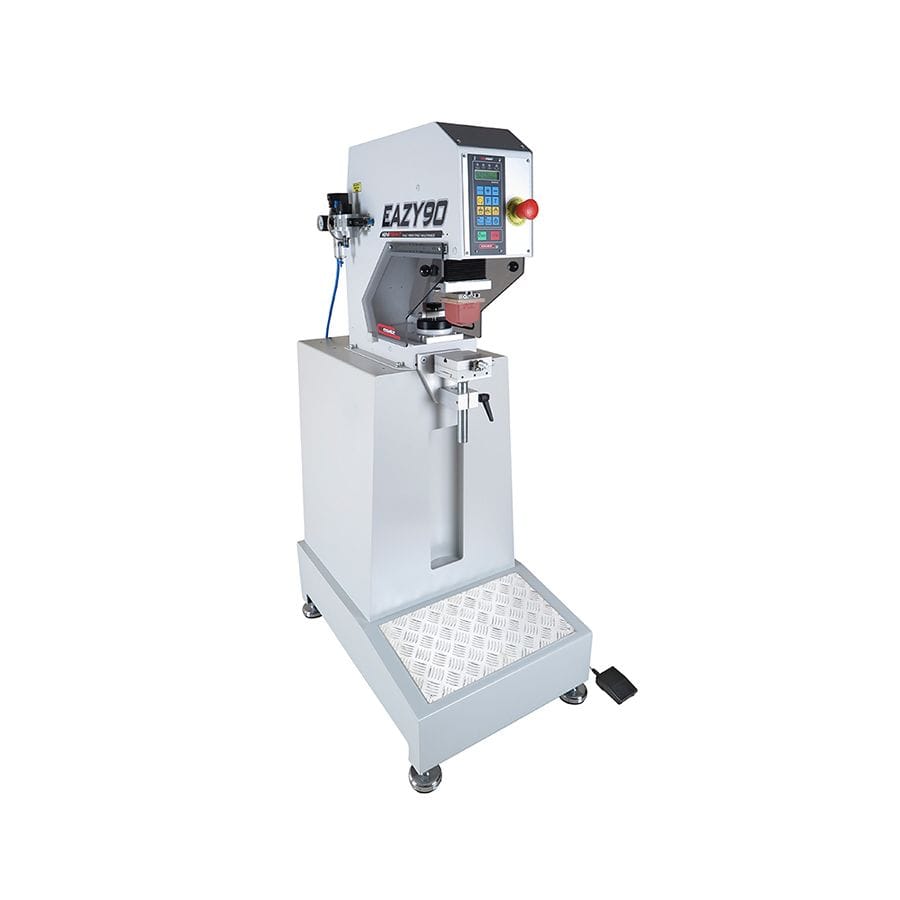

Comec Inkprint EAZY90 1C Pad Printing Machine

High Pad Printing Quality

The last member of COMEC-ITALIA EAZY product line, the EAZY 90 Pad Printing Machine, is made of high-quality components for high quality printing.

It always provides high pad print quality with the following features.

Highlights

⦁ Closed tray; single color 90mm, two colors 70mm ceramic inkcups.
⦁ Digital control panel.
⦁ FESTO, PARKER, SMC pneumatic components, worldwide spare parts stock.
⦁ Maintenance-free type elements do not require extra maintenance.
⦁ Inkcups and pad groups are activated by different cylinders.
⦁ Simple to use and installation
⦁ Steel body.

Application area

⦁ Electric, switch, socket, fuse, circuit breaker, button, knob
⦁ Plastic; Hanger, plug, brush, glasses, glass cover
⦁ Automotive; plastic and metal parts, hoses.
⦁ Promotional items; hotel eqipments, pen/pencil, lighter, bottle, cap, lipstick, nail polish bottle

Up to 50% Savings in Ink Consumption

The closed ink cup system saves up to 50% ink consumption during the ink exchange and also increases the life of the cliché with ceramic rings.
Because the ink cup prevents the evaporation of the solvents in the ink, it makes the printing environment healthier.

Easy-to-use Pad Printing Machine

Perfect printing with precise adjustment.
The new digital control unit of Eazy 90 makes it easy to make precise changes and adjustments in the printing process.
Pneumatic equipment makes perfect balanced printing and independent pressure regulation possible.
The use of the multilingual panel is quite simple.

Easy Transfer to Two Color Printing

Thanks to the conversion kits required for 1 or 2 color printing, the two-color machine can be used as single color for larger prints with a 90 mm ink cup, which can be replaced by removing 90 mm diameter ink cups.
The single color machine can be converted into a two-color machine in the future with two color kits.

Maintenance-Free Construction

Maintenance free pneumatic equipment
All models are equipped with maintenance-free pneumatic equipment and do not require special maintenance.

General Information

The adjustment table 011.1104 of the INKPRINT EAZY 90 pad printing machine is precisely adjustable on the X-Y-Z-R axes
The single color EAZY 90 pad printing machines are sold with 90 mm diameter closed ink cups and 100 × 225 mm standard cliché size, two color machines 70 mm diameter closed ink cups and 80 × 225 mm standard cliché sizes.

Accessories

• Painted steel bench to hold the machine
• Scale
• Extended adjustment table support
• One Color Kit
• Two Color Kit
• Starter Set

Notes

⦁ Machine accessories are available on request

Teknik Özellikleri

Printing Features	1C	2C RR
Number of Colors	1 Color	2 Colors
Cliché Size	100×225 mm	80×225 mm
Ink Cup Diameter	90 mm	70 mm
Maximum Printing Area	ø75 mm	ø55 mm
Pad Horizontal Stroke	125 mm	125 mm
Pad Vertical Stroke	80 mm	80 mm
Two Colors -RR Cylinder Length	–	90mm
Maximum Printing Force	680 N	680 N
Printing Speed/Hour	1200 Pieces	800 Pieces
Power Supply and Control
Control	Electro pneumatic
Power Supply	110/220 Volt
Pneumatic Supply	6 Bar
Dimensions
Width	330 mm	435 mm
Length	660 mm	660 mm
Height	535 mm	535 mm
Weight without Bench	36 kg	43 kg
