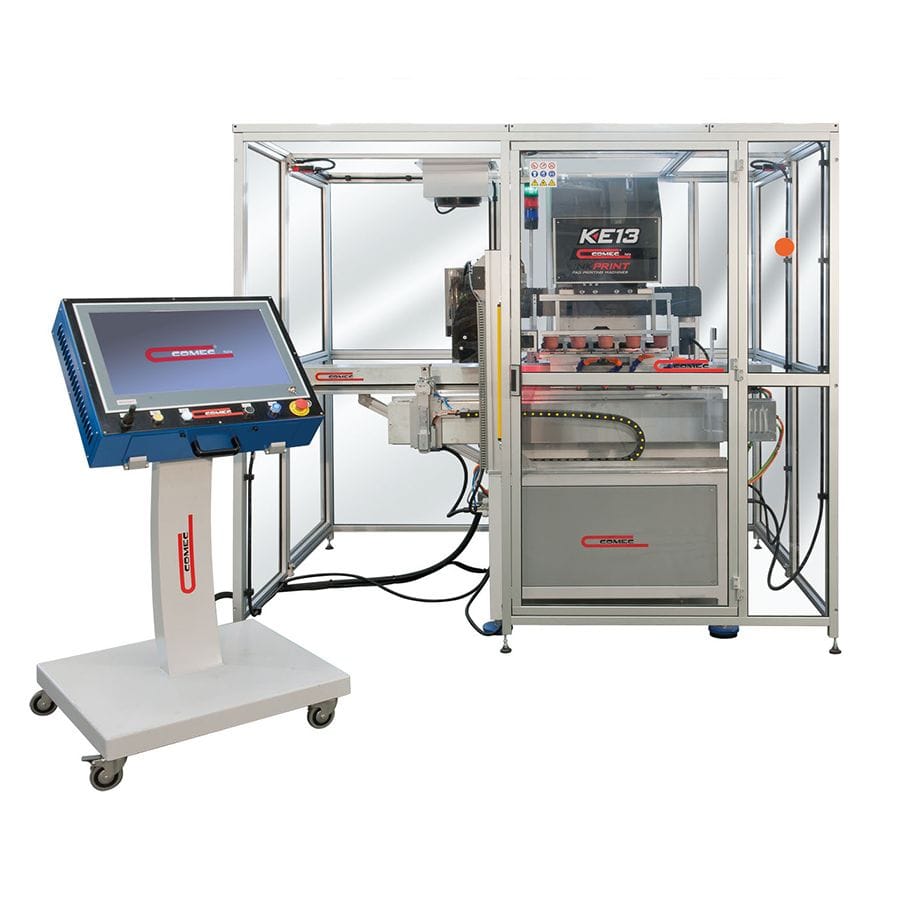

Comec Inkprint KE13 4C/5C INDEPENDENT PAD

With the modern exterior look of the KE13 and the new technology is designed to develop pad printing and reduce the work as much as possible.

With more than 40 years of machine production and printing experience, all the know-how for increasing print quality and production performance has been transferred to KE13 series.

Brushless motors used in the KE13 series provide 25-30% speed increase compared to standard pneumatic systems, as well as position precision in point size prints.

The movement of -X and its axes is provided by brushless motors connected to endless screws.

All horizontal and vertical movements of the pads, base and feeder unit are set by the industrial PC in the control console.

The adjustable positioning accuracy of the print at the touch screen is 0.01mm.

All the ink receiving and printing values of the prints are stored on the PC so that the switching time from one print to the next is shortened.

KE13 is 1-5 colors machine and has a wide range of products which can be sliding for long prints when necessary. The diameter of the ink trays are 130 mm.

The machines are prepared in accordance with your special printing purposes; special design changes according to your requests are possible.

Accessories

• Hotwind 200; supplies hot air to pads.
• Automatic pad cleaning equipment (patented).
• Independent motion option of the pads.
• Pretreatment with corona or flame methods prior to printing.
• Various equipment for automatic loading and unloading of pieces to be printed.
• De-Ionizer.
• UV dryer for UV inks.
• All feeding types: step-by-step, linear, elliptical or rotary table.

Notes

• Machine accessories are available on request

Technical Specifications

Printing Features	KE13 1C	KE13 4C/5C	KE13 4C/5C Independent Pad	KP1E 1C Sliding
Number of Colors	1 Color	4/5 Colors	4/5 Colors	1 Colors
Cliché Size	150×300 mm	150×300 mm	150×300 mm	150×550 mm
Closed Ink Tray Diameter	ø130 mm	ø130 mm	ø130 mm	ø130 mm
Maximum Print Area	ø115 mm	ø115 mm	ø115 mm	115 mm x 300 mm
Pad Group Carrier Cylinder Length	320 mm	320 mm	320 mm	320 mm
Printing Cylinder Length	100 mm	100 mm	XXX mm	100 mm
Two Colors RR Cylinder Length	–	–	–	–
Maximum Printing Pressure	5200 N	5200 N	5200 N	5200 N
Supply and Control
Control	Brushless motor – Endless Screw
Power Supply	380 Volt
Pneumatic Supply	6 Bar
Dimensions
Width	1600 mm*	2060 mm*	2060 mm*	1600 mm*
Length	1536 mm*	1536 mm	1536 mm	1536 mm
Height	1937 mm*	1937 mm*	1937 mm*	1937 mm*
Weight with Base	± 1050 kg*	± 1050 kg*	± 1050 kg*	± 1050 kg*
