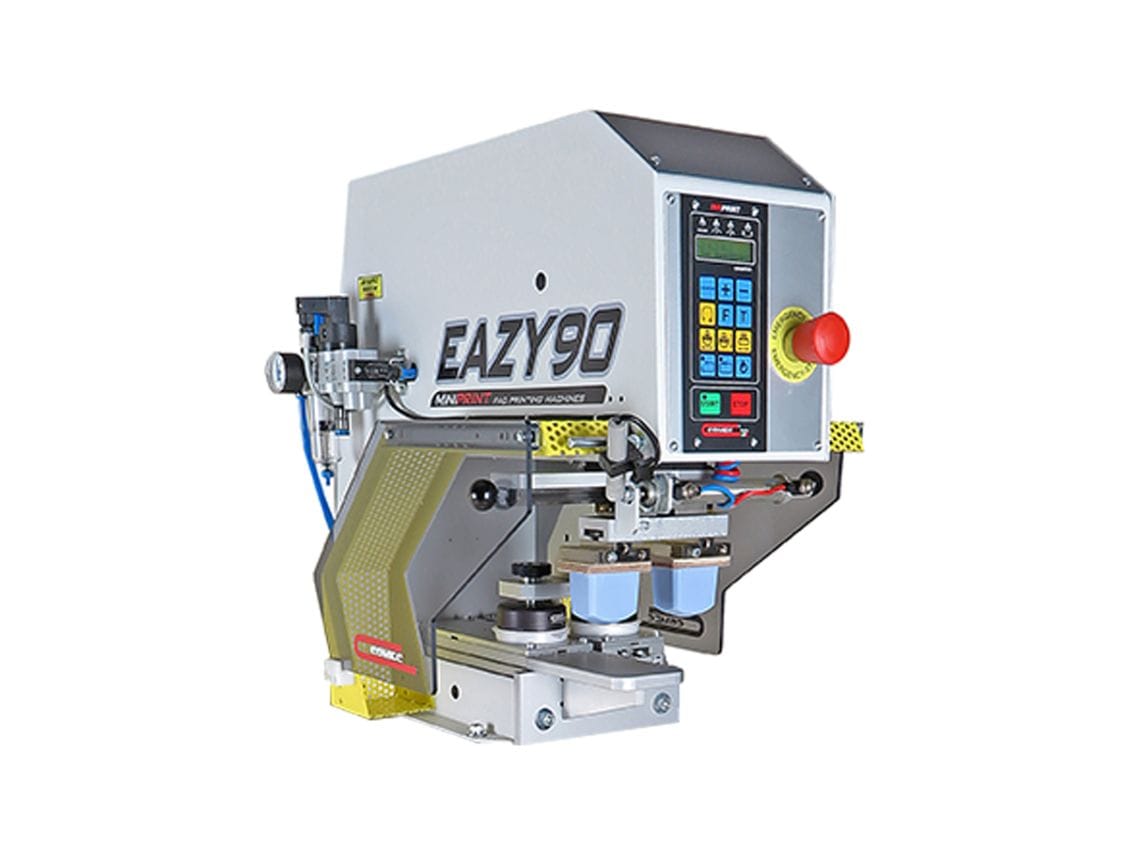

Inkprint EAZY90 Two Colors Textile Printing Machine

INKPRINT EAZY 90 TEX 2C RR is a new member of Comec’s range of washing instructions printing machines. The machine is made of high-quality components to provide high quality printing.

70 mm diameter closed cup system with ceramic ring, ensures easy to change color and 50% ink savings during the change. The machine also prevents the evaporation of solvents in the ink, allowing printing jobs to be done in a healthier environment.

Thanks to the cross laser on it; the product can be precisely aligned.

The control unit allows changes and adjustments in the printing process. Pneumatic processes make perfect balanced pressure and independent pressure regulation possible.

INKPRINT EAZY 90 TEX 2C RR washing instructions printing machines are offered for sale with special printing tables, 80 x 225 mm cliché sizes and 70 mm diameter ink trays. At the same time, the machine is very easy to use and requires no special maintenance.

INKPRINT EAZY 90 TEX  2C RR washing instructions printing machines are ideal for underwear prints.

Accessories

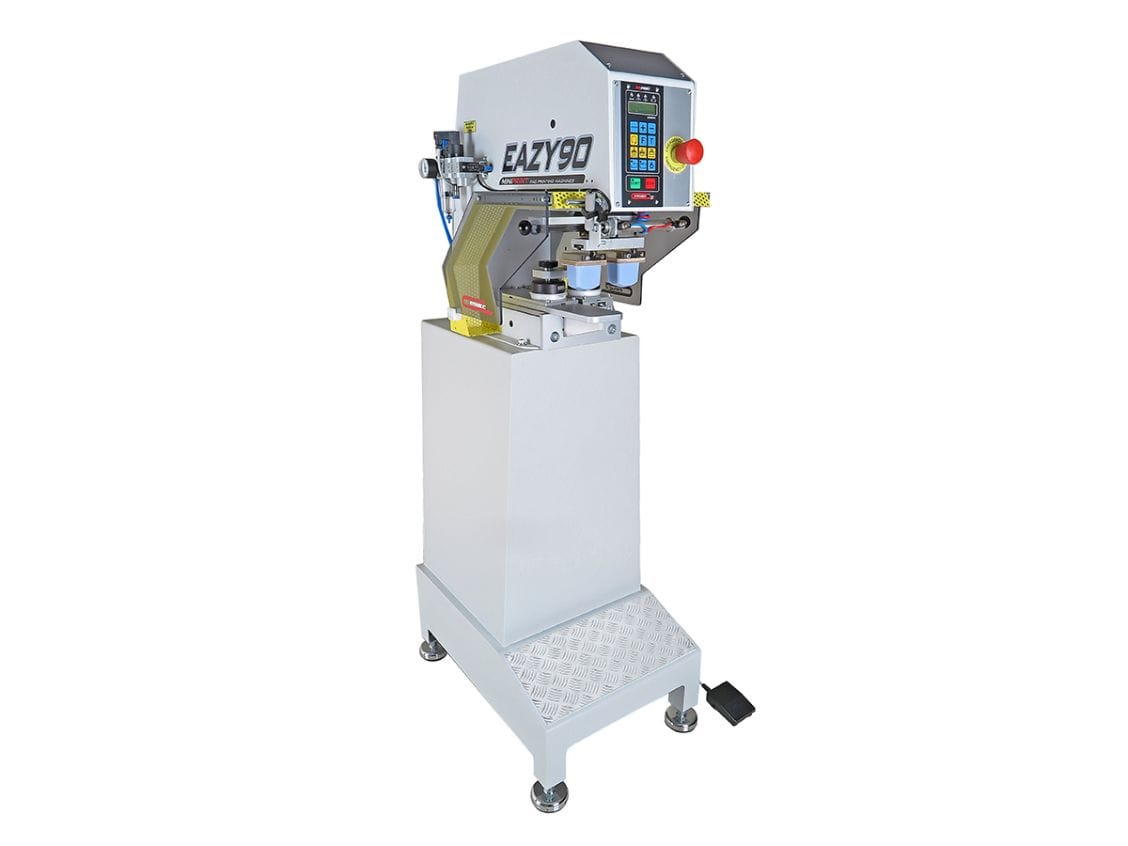

• Painted steel bench to hold the machine
• Scale
• Printing table supports in various different size
• One color kit

Notes

• Machine accessories are available on request.

Technical Specifications

Printing Features	2C RR
Number of Colors	2 Color
Cliché Size	80×225 mm
Ink Cup Diameter	70 mm
Maximum Printing Area	ø55 mm
Pad Horizontal Stroke	125 mm
Pad Vertical Stroke	80 mm
RR Cylinder Length	90 mm
Maximum Printing Force	680 N
Print Speed/Hour	800 Pieces
Power Supply and Control
Control	Electro Pneumatic
Power Supply	110/220 Volt
Pneumatic Supply	6 Bar
Dimensions
Width	435 mm
Length	660 mm
Height	535 mm
Weight Without Base	43 kg
