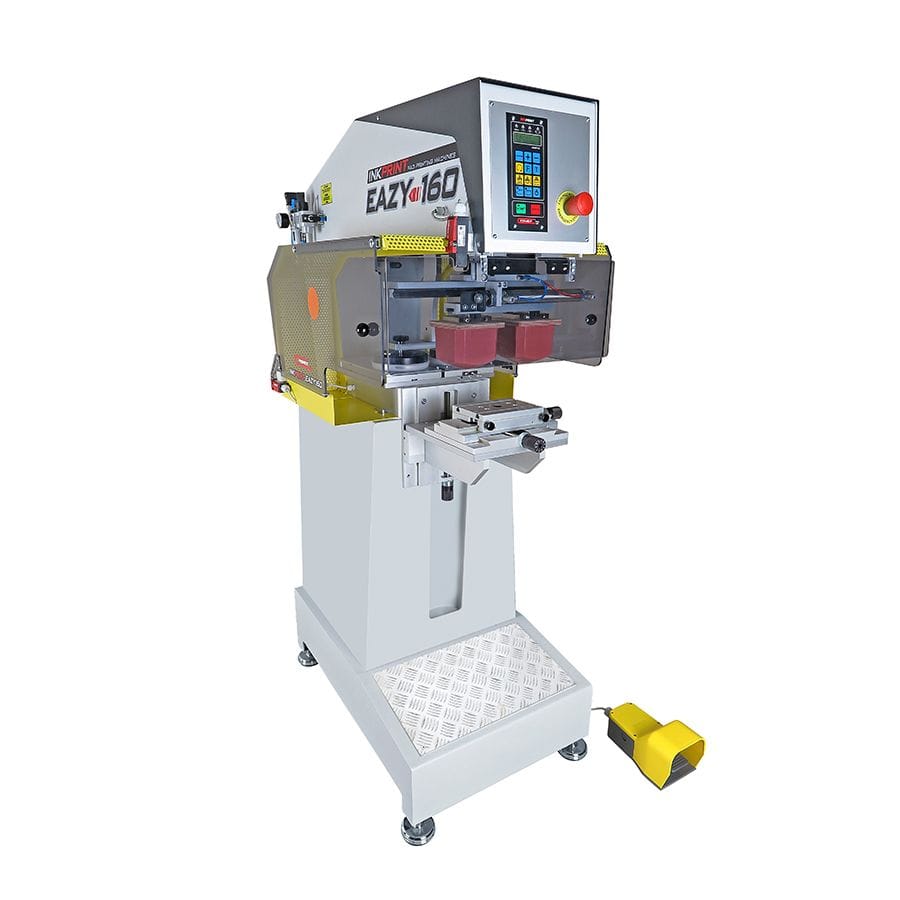

Comec Inkprint EAZY160 2C Pad Printing Machine

High Pad Printing Quality

The last member of Comec’s EAZY product line, the EAZY 160 Pad Printing Machine, is made of high-quality components for high quality printing.

These features ensure high buffer print quality at all times.

Highlights of EAZY 160

• Closed ceramic ink trays; Mono color 160 mm, two colors 130 mm.
• Digital control panel.
• FESTO, PARKER, SMC pneumatic components, worldwide spare parts stock.
• No need of extra maintenance for the maintenance free parts.
• Trays and pad units are operated by different cylinders.
• Steel frame.

Application

• For large pieces, large printing facility.
• Dish washers, washing machines, television, vacuum cleaner, Small household appliances, etc.
• Current meters, binary switches, double sockets..
• Plastics; wall socket safe.
• Automotive; plastic and metal components, hoses.

Easy Color Exchange

Up to 50% saving in ink consumption with closed ink cups.
The hermetic system, which uses a 160 mm diameter closed ink chamber
with a ceramic stripping ring, makes color changes easy.

Extra ink can be saved using 130mm, 110mm, 90mm, 70mm, 60mm ink trays for small prints instead of 160mm trays when desired.

Up to 50% Savings in Ink Consumption

The closed tray ink system saves up to 50% ink during the exchange and also increases the life of the cliche with ceramic strippersBecause the reservoir prevents the evaporation of solvents in the ink, it makes the printing environment more healthy.

Easy-to-use Pad Printing Machine

Perfect printing with precise adjustment.
The Eazy160’s new digital control unit allows for precise changes and adjustments in the printing process with easy operation.

Pneumatic equipments make perfect balanced printing and independent pressure regulation possible. The use of the Turkish panel is quite simple.

Easy Transfer to Two Color Printing

Thanks to the conversion kits required for 1 or 2 color printing, the two-color purchased machine can be used in monochrome for larger prints with a 160 mm tray, which can be replaced by removing 130 mm trays.

The monochrome purchased machine can be converted into a two-color machine with two color kits in the future if desired.

Maintenance-Free Construction

Maintenance free pneumatic equipment
All models are equipped with maintenance-free pneumatic equipment and do not require special maintenance

General Information

INKPRINT EAZY 160 Pad Printing Machine’s  adjustment table MVTC140L,  has the ability to be precisely adjusted on the , X-Y-Z-R axes.

The monochrome Eazy 160 Pad Printing Machines are available with 160 mm diameter closed ink trays and 180 × 360 mm standard cliche size, two color machines with 130 mm diameter closed ink trays and 150 × 300 mm standard cliche sizes.

(*)The pad group and the ink tray are moved by two independent pneumatic cylinders.

By this way, printing can be done on larger parts than on machines with a single pneumatic cylinder.

Accessories

• Steel machine base with cabinet, painted in body color
• Scale
• Extended adjusting tray support
• Mono color kit
• Two color kit
• Starter set

Notes

• Machine accessories are available on request depending on your needs

Technical Specifications

Printing Features	1C	2C RR
Number of Colors	1 Color	2 Colors
Cliché Dimensions	180×360 mm	150×300 mm
Closed Ink Tray Diameter	160 mm	130 mm
Maximum Printing Area	ø145 mm	ø115 mm
Pad Group Carrier Cylinder	300 mm (*)	300 mm (*)
Print Cylinder Length	100 mm	100 mm
Two colors RR Cylinder Length	–	160mm
Maximum Print Pressure	1680 N	1680 N
Print Speed/Hour	800 Pieces	600 Pieces
Feed and Control
Control	Electropneumatic
Power Supply	110/220 Volt
Pneumatic Supply	6 Bar
Dimensions
Width	410 mm	755 mm
Length	1025 mm	1025 mm
Height	680 mm	680 mm
Weight (Without Base)	95 kg	115 kg
