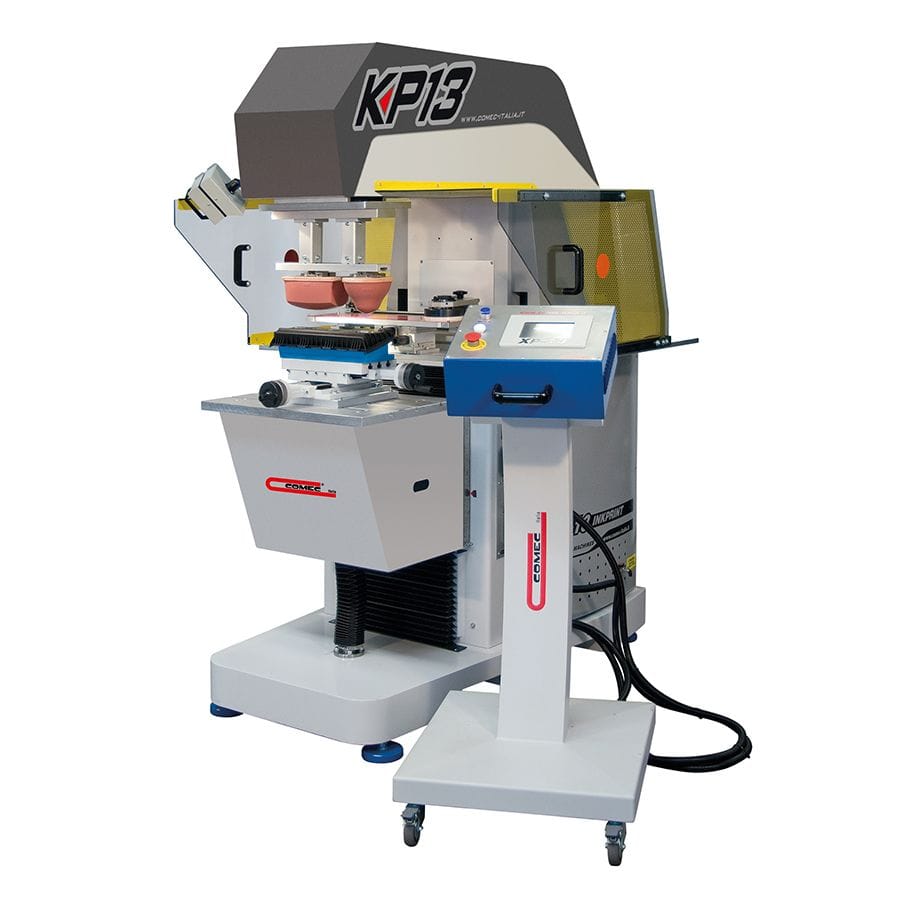

KP13 is designed to develop pad printing and reduce the work as much as possible with its modern exterior and new techonology. All the know-how for improving print quality and production performance has been transferred to KP13 series with more than 40 years of experience in machine production and printing.
All the horizontal and vertical movements of the pads, stand and feeder unit are adjusted by the industrial PC in the control console. Print inking, print height, and pause values are stored on the PC so that the time switching from one print to the next print is shortened.
KP13 is a range of products with a rich product range of 1-5 colors, which can be slid for long prints when needed. The diameter of the ink tray is 130 mm.
The machines are prepared in accordance with your special printing purposes and special design changes according to your requests are possible.
Aksesuarlar
- Hotwind 200; continiously provides hot air to the pads.
- Automatic pad cleaning (Patented).
- Independent movement of the pads.
- Pre-treatment with corona or flame before printing.
- Various equipments for automatic loading and unloading of parts to be printed.
- De-Ionizer.
- UV dryer for UV inks.
- All feeding types: step-by-step, linear, elliptical or rotary table.
Notes
- Machine accessories are optional.
Technical Specifications
Printing Features | KP13 1C | KP13 4C/5C | KP13 4C/5C Independent Pad | KP13 1C Sliding |
---|---|---|---|---|
Number of Colors | 1 Color | 4/5 Colors | 4/5 Colors | 1 Color |
Cliche Size | 150×300 mm | 150×300 mm | 150×300 mm | 150×550 mm |
Closed Ink Tray Diameter | ø130 mm | ø130 mm | ø90 mm | ø130 mm |
Maximum Printing Area | ø115 mm | ø115 mm | ø115 mm | 115 mm x 300 mm |
Pad Group Carrier Cylinder Length | 320 mm | 320 mm | 320 mm | 320 mm |
Printing Cylinder Length | 100 mm | 100 mm | XXX mm | 100 mm |
Two Colors RR Cylinder Length | – | – | – | – |
Maximum Printing Pressure | 4700 N | 4700 N | 4700 N | 4700 N |
Supply and Control | ||||
Control | Electro Pneumatic | |||
Power Supply | 380 Volt / 220 Volt | |||
Pneumatic Supply | 6 Bar | |||
Dimensions | ||||
Width | 1600 mm* | 2060 mm* | 2060 mm* | 1600 mm* |
Length | 1536 mm* | 1536 mm | 1536 mm | 1536 mm |
Height | 1937 mm* | 1937 mm* | 1937 mm* | 1937 mm* |
Weight with Base | ± 900 kg* | ± 900 kg* | ± 900 kg* | ± 900 kg* |
