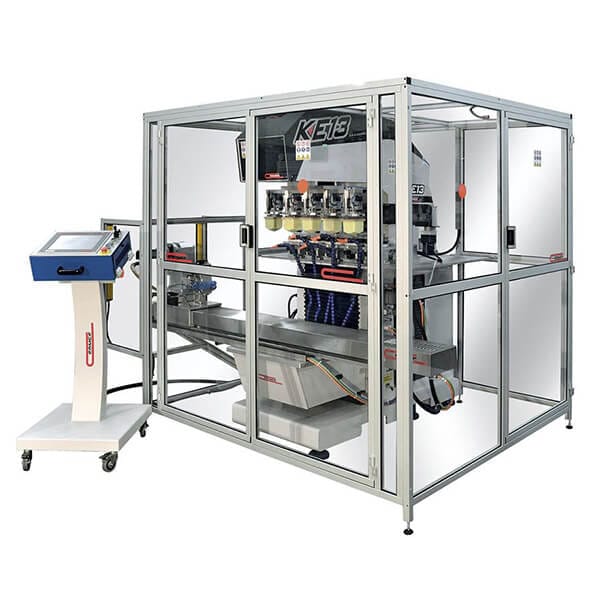

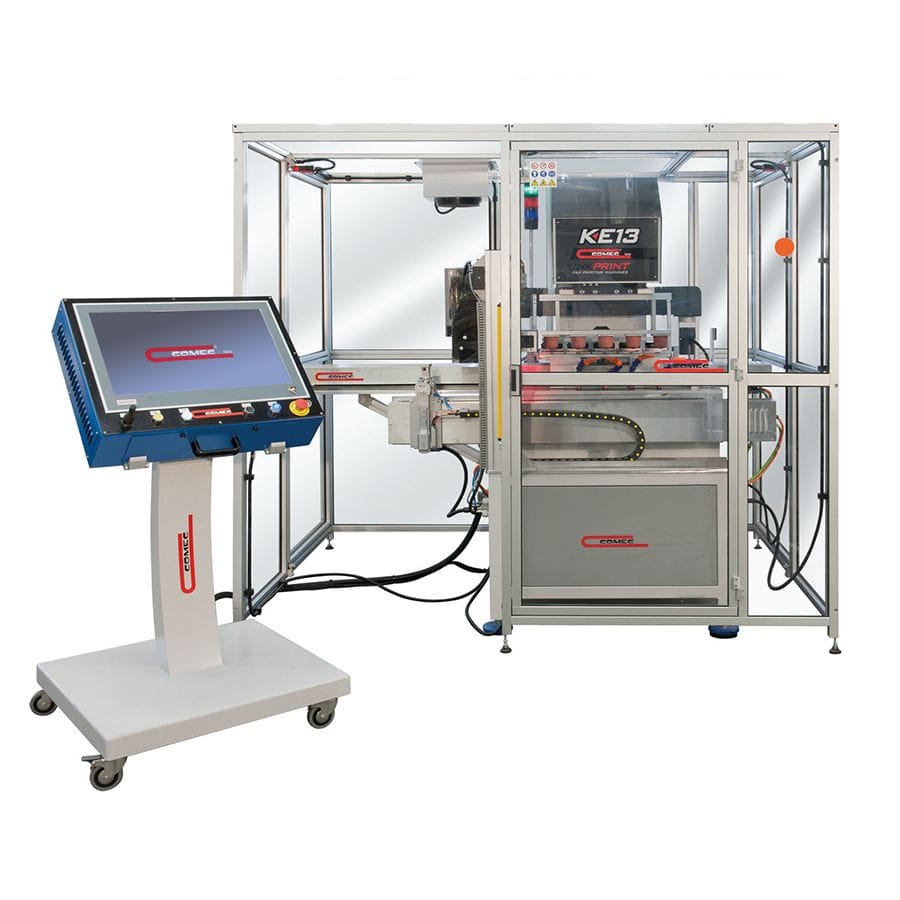

With the modern exterior look of the KE13 and the new technology is designed to develop pad printing and reduce the work as much as possible.
With more than 40 years of machine production and printing experience, all the know-how for increasing print quality and production performance has been transferred to KE13 series.
Brushless motors used in the KE13 series provide 25-30% speed increase compared to standard pneumatic systems, as well as position precision in point size prints.
The movement of -X and its axes is provided by brushless motors connected to endless screws.
All horizontal and vertical movements of the pads, base and feeder unit are set by the industrial PC in the control console.
The adjustable positioning accuracy of the print at the touch screen is 0.01mm.
All the ink receiving and printing values of the prints are stored on the PC so that the switching time from one print to the next is shortened.
KE13 is 1-5 colors machine and has a wide range of products which can be sliding for long prints when necessary. The diameter of the ink trays are 130 mm.
The machines are prepared in accordance with your special printing purposes; special design changes according to your requests are possible.
Accessories
- Hotwind 200; supplies hot air to pads.
- Automatic pad cleaning equipment (patented).
- Independent motion option of the pads.
- Pretreatment with corona or flame methods prior to printing.
- Various equipment for automatic loading and unloading of pieces to be printed.
- De-Ionizer.
- UV dryer for UV inks.
- All feeding types: step-by-step, linear, elliptical or rotary table.
Notes
- Machine accessories are available on request
Technical Specifications
Printing Features | KE13 1C | KE13 4C/5C | KE13 4C/5C Independent Pad | KP1E 1C Sliding |
---|---|---|---|---|
Number of Colors | 1 Color | 4/5 Colors | 4/5 Colors | 1 Colors |
Cliché Size | 150×300 mm | 150×300 mm | 150×300 mm | 150×550 mm |
Closed Ink Tray Diameter | ø130 mm | ø130 mm | ø130 mm | ø130 mm |
Maximum Print Area | ø115 mm | ø115 mm | ø115 mm | 115 mm x 300 mm |
Pad Group Carrier Cylinder Length | 320 mm | 320 mm | 320 mm | 320 mm |
Printing Cylinder Length | 100 mm | 100 mm | XXX mm | 100 mm |
Two Colors RR Cylinder Length | – | – | – | – |
Maximum Printing Pressure | 5200 N | 5200 N | 5200 N | 5200 N |
Supply and Control | ||||
Control | Brushless motor – Endless Screw | |||
Power Supply | 380 Volt | |||
Pneumatic Supply | 6 Bar | |||
Dimensions | ||||
Width | 1600 mm* | 2060 mm* | 2060 mm* | 1600 mm* |
Length | 1536 mm* | 1536 mm | 1536 mm | 1536 mm |
Height | 1937 mm* | 1937 mm* | 1937 mm* | 1937 mm* |
Weight with Base | ± 1050 kg* | ± 1050 kg* | ± 1050 kg* | ± 1050 kg* |
