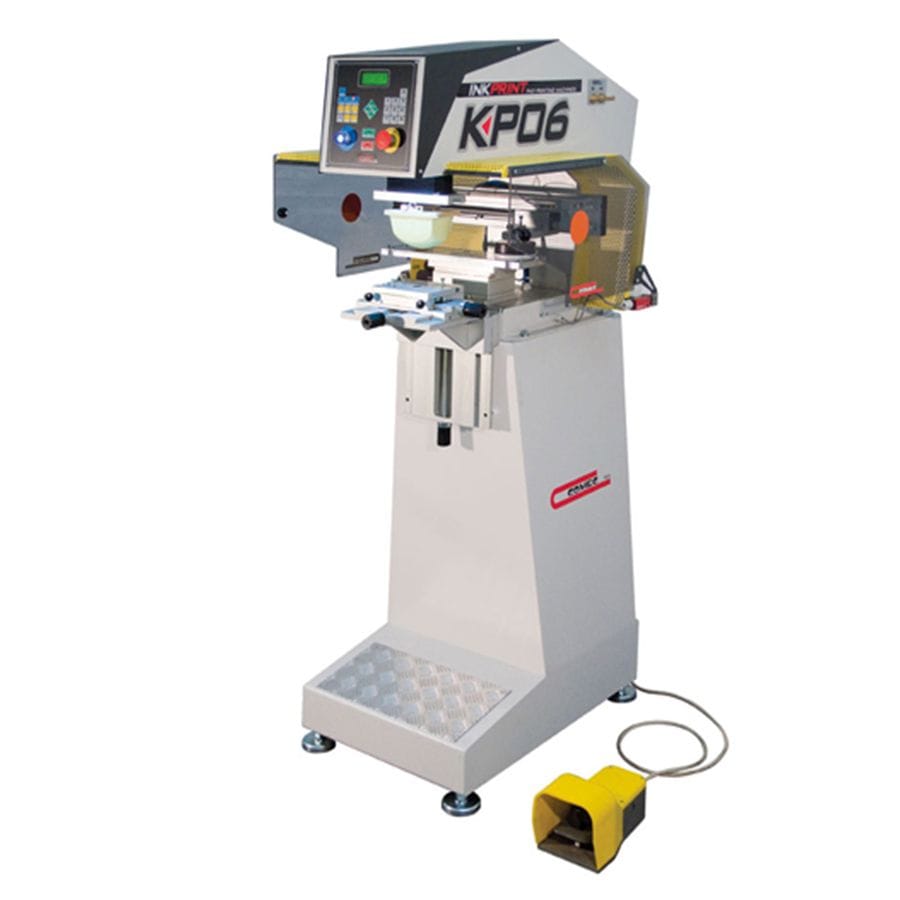

Comec Inkprint KP06 1C SLIDE Pad Printing Machine

The electro pneumatic pad printer XP06, designed to be part of an electronically controlled automation systems, ensures sharp precision and high-quality prints even when applied on inclined surfaces.

Features of electro pneumatic construction in KP 06 models;

• 1 or 2 colors printing with 110 mm diameter closed ink trays,
• Use of rotary table or station type loaders in two-color models,
• 360 ° printing with the use of AUR-360 equipment,
• Printing of two or more materials at the same time,
• Increase the coverage by printing twice with high sensitivity,

Preparing the machine for printing is simple and fast.

The plates on which the clichés are placed are mounted on bearings which are movable in the x-y axes and are capable of ± 10 ° rotation in their axis.

All the machines are equipped with closed type ceramic ringed trays for the quick and easy application of the ink to the clichés and to increase the cliché life.
The machine also prevents evaporation of solvents in the ink mixture, allowing printing jobs to be done in a healthier environment.

The fixture on which the pieces to be printed are placed can be quickly adjusted and fixed with micrometric adjustment in the XYZ axes and ± 15 ° rotation ability in its axis.

They are equipped with maintenance free pneumatic equipment and do not require special maintenance.

Accessories

• Steel machine base painted in body color with cabinet.
• Hotwind 200; supplies hot air to pads.
• Automatic pad cleaning equipment (patented).
• Independent motion option of the pads.
• Pretreatment with corona or flame methods prior to printing.
• Various equipment for automatic loading and unloading of pieces to be printed.
• De-Ionizer.
• UV dryer for UV inks.
• All feeding types: step-by-step, linear, elliptical or rotary table

Notes

• Machine accessories are available on request

Technical Specifications

Printing Features	KP06 1C	KP06 2C RR	KP06 1C SLIDE
Number of Colors	1 Color	2 Colors	1 Colors
Cliché Size	120×250 mm	120×250 mm	100×400 mm
Closed Ink Tray Diameter	ø110 mm	ø110 mm	ø90 mm
Maximum Printing Area	ø95 mm	ø95 mm	75 mm x 300 mm
Pad Group Carrier Cylinder Length	200 mm	200 mm	200 mm
Printing Cylinder Length	100 mm	100 mm	100 mm
Two Colors RR Cylinder Length	–	125 mm	–
Maximum Printing Pressure	1180 N	1180 N	1180 N
Printing Speed/Hour	1200 Pieces	800 Pieces	750 Pieces
Supply and Control
Control	Electro Pneumatic
Power Supply	220 Volt
Pneumatic Supply	6 Bar
Dimensions
Width	500 mm	500 mm	500 mm
Length	900 mm	900 mm	900 mm
Height	700 mm	1100 mm	1100 mm
Wight Without Base	85 kg	95 kg	90 kg
