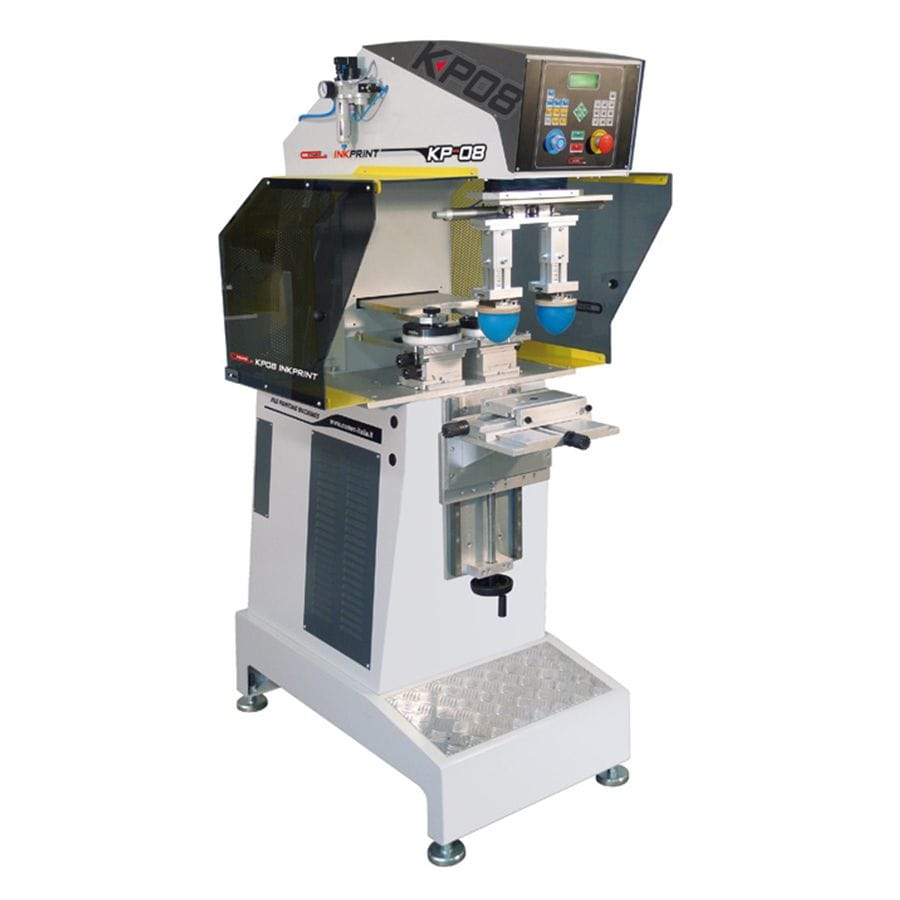

Comec Inkprint KP08 2C INDEPENDENT PAD

INKPRINT KP08 Electropneumatic functioning pad printing machine controlled elecronically suitable for automatic handling system. Prints are very high quality and with high precision even when the print is on irregular surfaces.

The Electronic Logic for Models KPO8 allows

• Print from 1 to 5 colors with linear or elliptical conveyor,
• 1-2 Colors printing with 130 mm closed ink trays,
• 1-5 Colors printing with linear or elliptical carriers,
• The use of rotary table or station type loaders in two color models,
• 360° print (with optional device mod. AUR-360)
• Print on 2 or more pieces at the same time,
• Increase the coverage by printing twice with high precision.

The set up of the machine is very easy and fast. The plates on which the cliches are placed are mounted on bearings which are movable in the XY axes and are capable of ± 10 ° rotation in their own axis. All the machines are equipped with closed type ceramic ringed trays for fast and easy application of the ink to the cliches and to increase the cliche life. The machine also prevents evaporation of solvents in the ink mixture, allowing printing jobs to be done in a healthier environment.he The fixture on which the materials to be printed are placed can be quickly adjusted and fixed with micrometric adjustment in the XYZ axes and ± 15 ° rotation in its own R axis.

Accesories

• Hotwind 200; Provides continuous hot air to the pads.
• Automatic pad cleaning apparatus (patented).
• Independent motion option of pads
• Corona or flame pretreatment before printing.
• Automatic loading and unloading of parts to be printed
• De-Ionizer
• UV dryer for UV inks
• All feeding types: step-by-step, linear, elliptical or rotary table.

Notes

• Machine accessories are optional.

Technical Specifications

Printing Features	KP08 1C	KP08 2C RR	KP08 2C RR Independent Pad	KP08 4C/5C	KP08 4C/5C Independent Pad	KP08 1C SLIDE
Number of Colors	1 Color	2 Colors	2 Colors	4/5 Colors	4/5 Colors	1 Colors
Cliche Size	150×300 mm	150×300 mm	150×300 mm	100×200 mm	100×200 mm	150×550 mm
Closed Ink Tray Diameter	ø130 mm	ø130 mm	ø130 mm	ø90 mm	ø90 mm	ø130 mm
Maximum Printing Area	ø75 mm	ø115 mm	ø115 mm	ø75 mm	ø75 mm	115 mm x 300 mm
Pad Group Carrier Cylinder Length	250 mm	250 mm	250 mm	250 mm	250 mm	250 mm
Printing Cylinder Length	80 mm	80 mm	80 mm	80 mm	60 mm	80 mm
2 Colors RR Cylinder Length	–	160 mm	160 mm	–	–	–
Maximum printing Pressure	1870 N	1870 N	1180 N x 2	1870 N	480 N x 4 / 480 N x 5	1870 N
Printing Speed/Hour	1200 Pieces	800 Pieces	800 Pieces	1000 Pieces	1000 Pieces	600 Pieces
Control	Electro Pneumatic	Electro Pneumatic	Electro Pneumatic	Electro Pneumatic	Electro Pneumatic	Electro Pneumatic
Power Supply	220 Volt	220 Volt	220 Volt	220 Volt	220 Volt	220 Volt
Pneumatic Supply	6 Bar	6 Bar	6 Bar	6 Bar	6 Bar	6 Bar
Width	1100 mm*	1100 mm*	1100 mm*	1100 mm*	1100 mm*	1100 mm*
Lenght	1100 mm*	1100 mm*	1100 mm*	1100 mm*	1100 mm*	1100 mm*
Height	1730 mm*	1730 mm*	1730 mm*	1730 mm*	1730 mm*	1730 mm*
Weight with Base	265 kg*	265 kg*	265 kg*	300 kg*	300 kg*	300 kg*

* Perimetric protection cabinet is not included.
