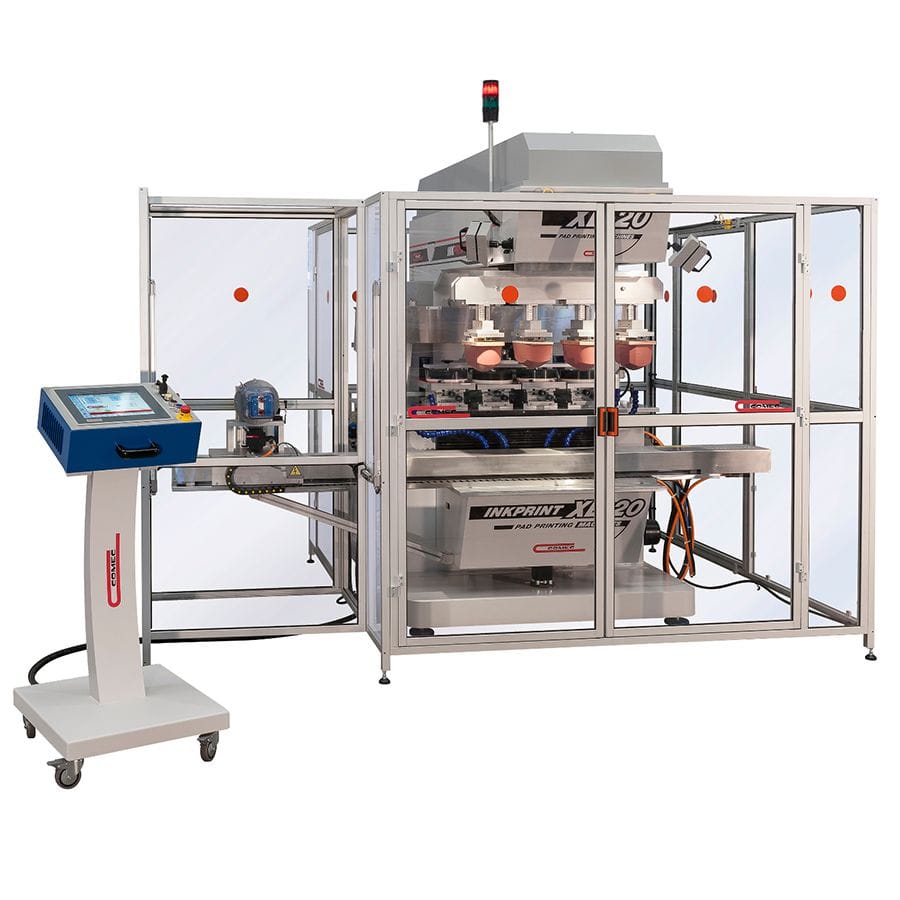

Comec Inkprint XE20 4C/5C SLIDE Pad Printing Machine

XE20 is designed to develop pad printing and reduce the work as much as possible with its modern exterior and new techonology.
All the know-how for increasing print quality and production performance has been transferred to KE20 series with more than 40 years of machine production and printing experience.

Brushless motors used in the XE20 series provide 25-30% speed increase compared to standard pneumatic systems, as well as position precision in point size prints.
The movement of -X and its axes are provided by brushless motors connected to endless screws.

All horizontal and vertical movements of the pads, base and feeder unit are set by the industrial PC in the control console.
The adjustable positioning accuracy of the print at the touch screen is 0.01mm.
All the ink receiving and printing values of the prints are stored on the PC so that the switching time from one print to the next is shortened.

XE20 is 1-5 colors machine and has a wide range of products which can be sliding for long prints when necessary. The diameter of the ink trays are 200 mm.

The machines are prepared in accordance with your special printing purposes; special design changes according to your requests are possible.

Accessories

• Hotwind 200; supplies hot air to pads.
• Automatic pad cleaning equipment (patented).
• Independent motion option of the pads.
• Pretreatment with corona or flame methods prior to printing.
• Various equipment for automatic loading and unloading of pieces to be printed.
• De-Ionizer.
• UV dryer for UV inks.
• All feeding types: step-by-step, linear, elliptical or rotary table

Notes

• • Machine accessories are optional.

Technical Specifications

Printing Features	XE20 1C	XE20 4C/5C	XE20 4C/5C Independent Pad	XE20 1C Sliding
Number of Colors	1 Color	4/5 Colors	4/5 Colors	1 Color
Cliché Size	220×440 mm	220×440 mm	220×440 mm	220×650 mm
Closed Ink Tray Diameter	ø200 mm	ø200 mm	ø200 mm	ø200 mm
Maximum Printing Area	ø185 mm	ø185 mm	ø185 mm	185 mm x 300 mm
Y Axis Movement Distance	500 mm	500 mm	500 mm	500 mm
Z Axis Movement Distance	390 mm	390 mm	XXX mm	390 mm
Maximum Printing Pressure	15.000 N	15.000 N	15.000 N	15.000 N
Supply and Control
Control	Brushless Motor – Endless Screw
Power Supply	380 Volt
Pnömatik Besleme	6 Bar
Dimensions
Width	1700 mm*	1700 mm*	1700 mm*	1700 mm*
Length	1800mm*	1800mm*	1800mm*	1800mm*
Height	2265 mm*	2265 mm*	2265 mm*	2265 mm*
Weight with Base	± 1200 kg*	± 1200 kg*	± 1200 kg*	± 1200 kg*
