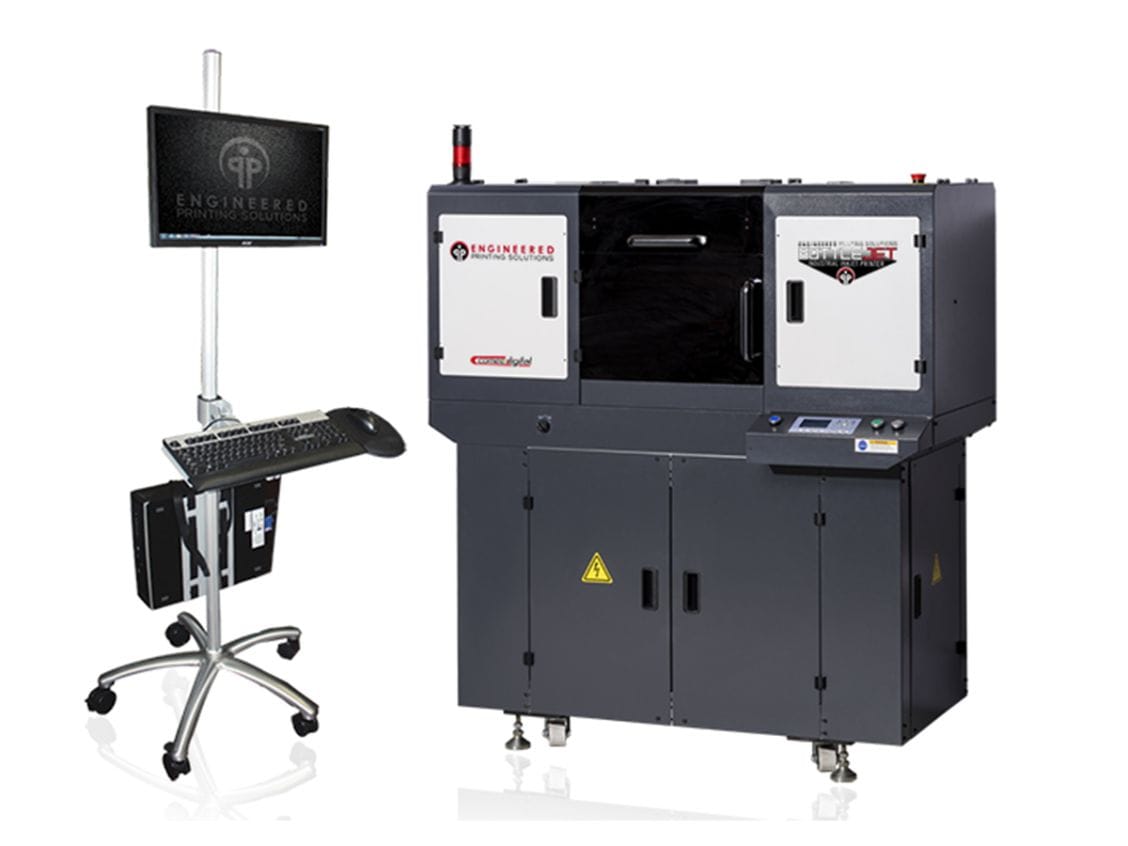

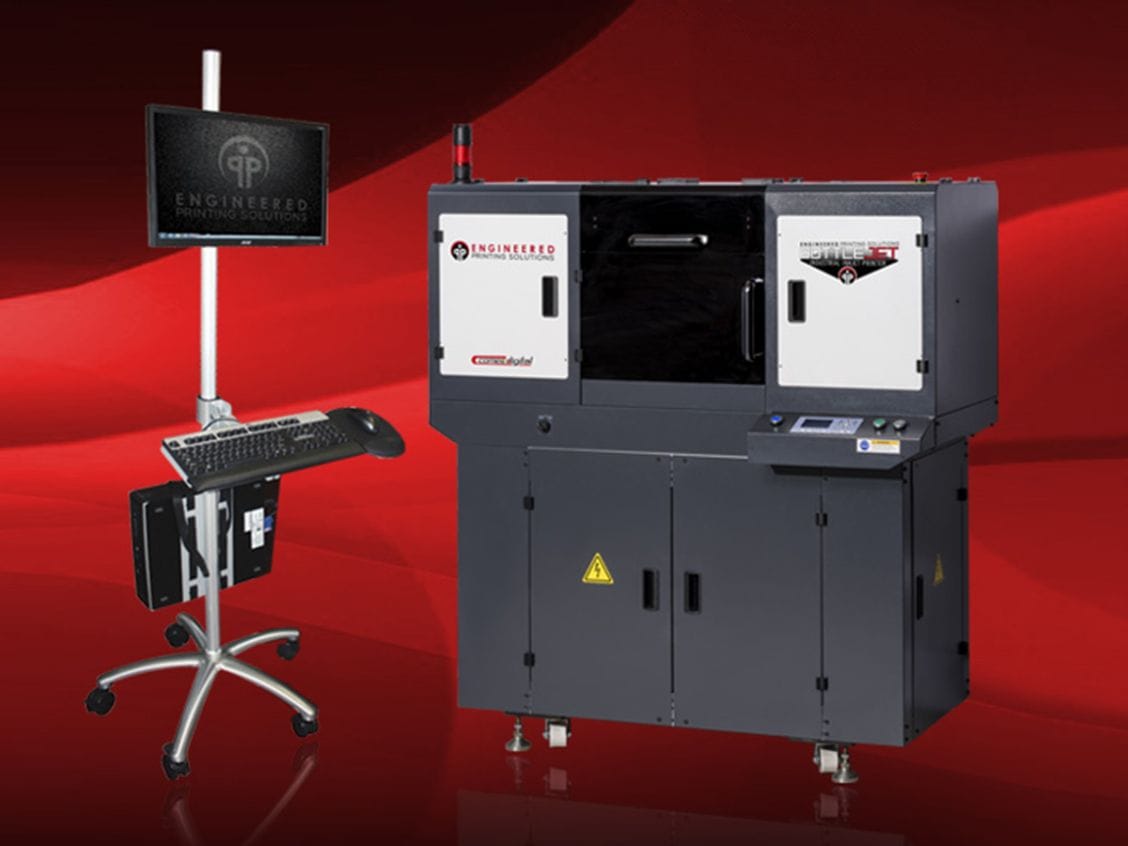

BOTTLEJET is a rotary UV LED digital inkjet printing machine, for printing and decorating cylindrical and conical surfaces in high resolution (up to 1200 dpi). Available with adjustable support for cylinders and cones. Easy to load and unload, with drying synchronized to the print, it uses up to 3 RICOH Gen 4 print heads. The RIP software allows to manage all printing operations.
- THE EPS Rotary UV Inkjet printing rotary machines are able to print with precision and high speed on cylindrical objects (straight walls) and conical objects such as bottles, glasses, etc. in high resolution. The UV inks used dry instantly during printing.
- This type of machines, unlike other solutions on the market, are designed specifically for rotary printing, so they are not just the result of adding an accessory to a flat machine.
Each parameter and each movement are designed specifically for this application. And this makes the difference.
Technical Specifications
Print Features | BOTTLEJET XD-360 |
---|---|
Maximum print area | Stitching image up to 10,4″ max. height Diameter up to 6″ max. |
Max product height | 300 mm |
Maximum resolution | 360 dpi |
Number of print heads | Up to 8 CMYK + WW w/ varnish and clear available |
Ink type | UV |
Format | TIFF |
Compatible Software | Adobe Illustrator & Photoshop, Corel Draw |
Image Process????ng Softwares | Global Ink Systems |
Software features | Job and Print Queue Management |
Power | 240 VAC 50/60 Hz 3-Phase, 20 A |
Computer | IndustrialPC with RIP software included |
Optional pre-treatment | Flame, Corona, Plasma |
Physical space | 72″ x 84″ x 53″ |
Print speed | 800 parts per hour average |
