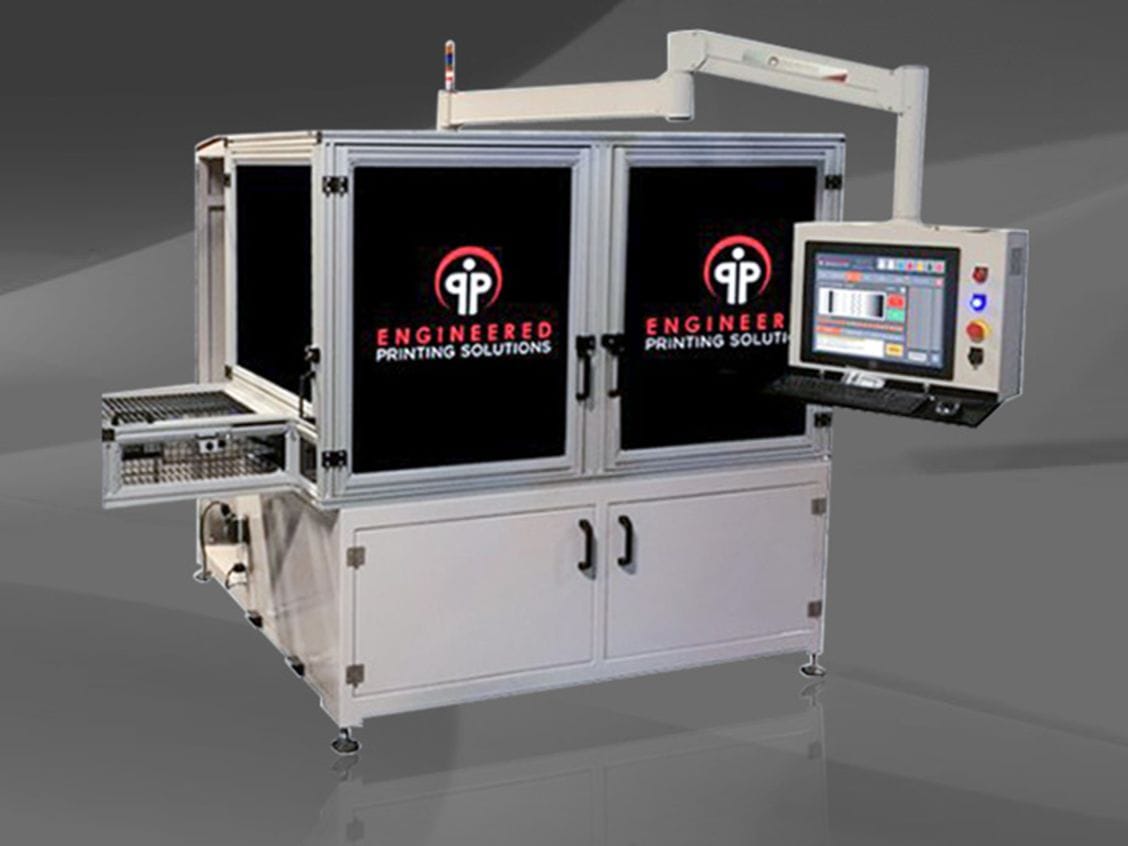

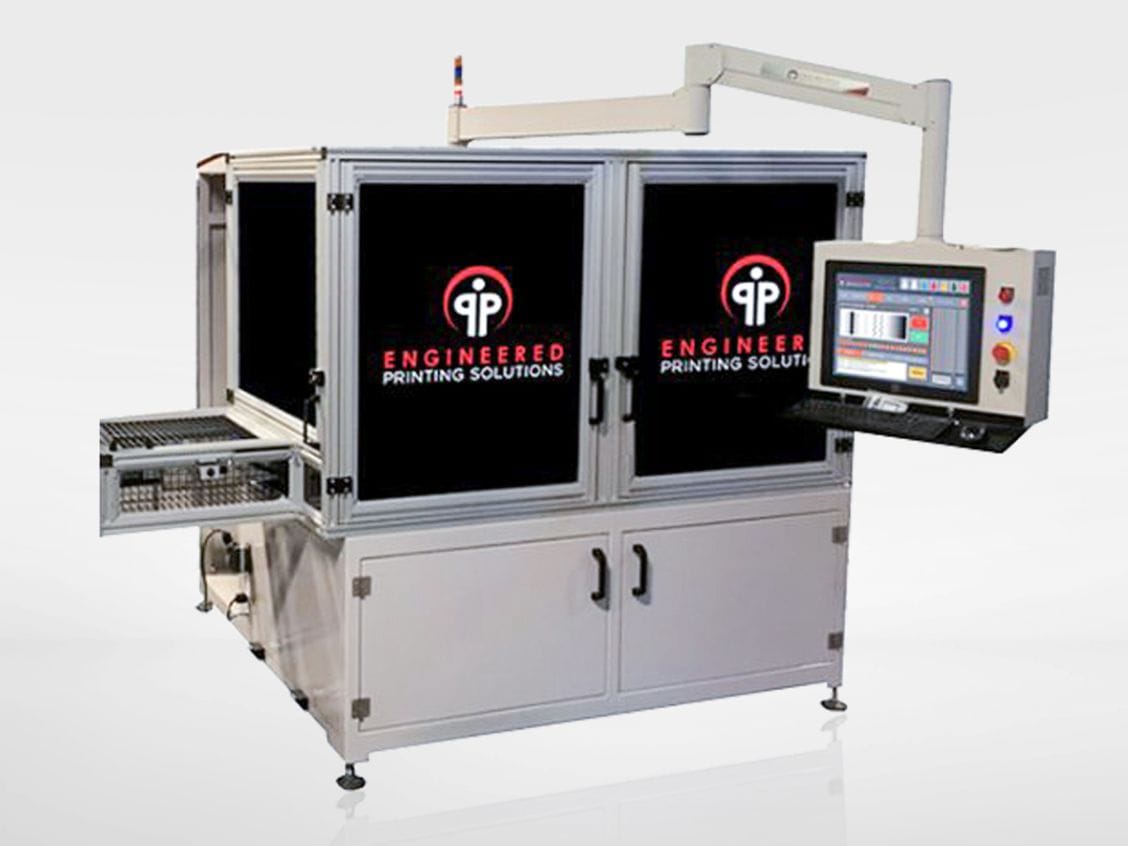

Speed and reliability are the main features of XD70, single pass digital inkjet printing machine. Ideal for printing on flat and semi-flat objects, makes a continuous multicolour printing with a single pass. The printing process is very fast thanks to the fast drying UV LED, the machine changes are fast and clean. Furthermore, the machine can be customized according to the customer’s needs with loading and unloading systems, customized supports for various parts, vision systems, etc.
Technical Specifications
| Print Features | XD70 |
|---|---|
| Maximum print width | 2.78″ more upon request |
| Maximum print lenght | 24″ more upon request |
| Maximum product dimensions |
11.8″ more upon request x 11.8″ more upon request x application dependent |
| Maximum print speed | 16″ per second |
| DPI | 360 dpi, single pass, single head, grayscale |
| Number of print heads | dependent upon customer needs, more upon demand |
| Ink type | UV liquid |
| Supported color configurations |
CMYK, Spot colors CMYKWS1S2S3, CMYKS, etc White for undercoat: CMYKWW |
| Pretreatment options | Flame, Corona, Plasma Cleaner: air knife and/or brush |
| I m age processing software | Optional Integrated RIP, Color Management, Variable Data |
| Software features | Job and print queue management diagnostics (both local and remote) |
| Accepted Image Data | Monochrome, color or prepared color separations, variety of common image formats are accepted for all image files, to include: .jpg, .tif, .bmp |
| Other file formats can be supported if used with EPSVT color management software. All formats will be converted internally into 8-bit bitmap format at 360 dpi. For optimal quality, especially when dealing with color-separated files generated by the customer, we recommend sending files in bitmap format (bmp) 8 bit or greater at a resolution of 360 dpi. | |
| Human Machine Interface | Industrial touch display including on-screen keyboard |
| Ambient temperature | 65 to 90 °F |
| Physical space | 114″ x 84″ x 106″ |
| Compressed air supply | Minimum 80 psi required |
| Power | 240VAC 50/60Hz 3-Phase, 20 A required |
| Humidity | 35-65% |
