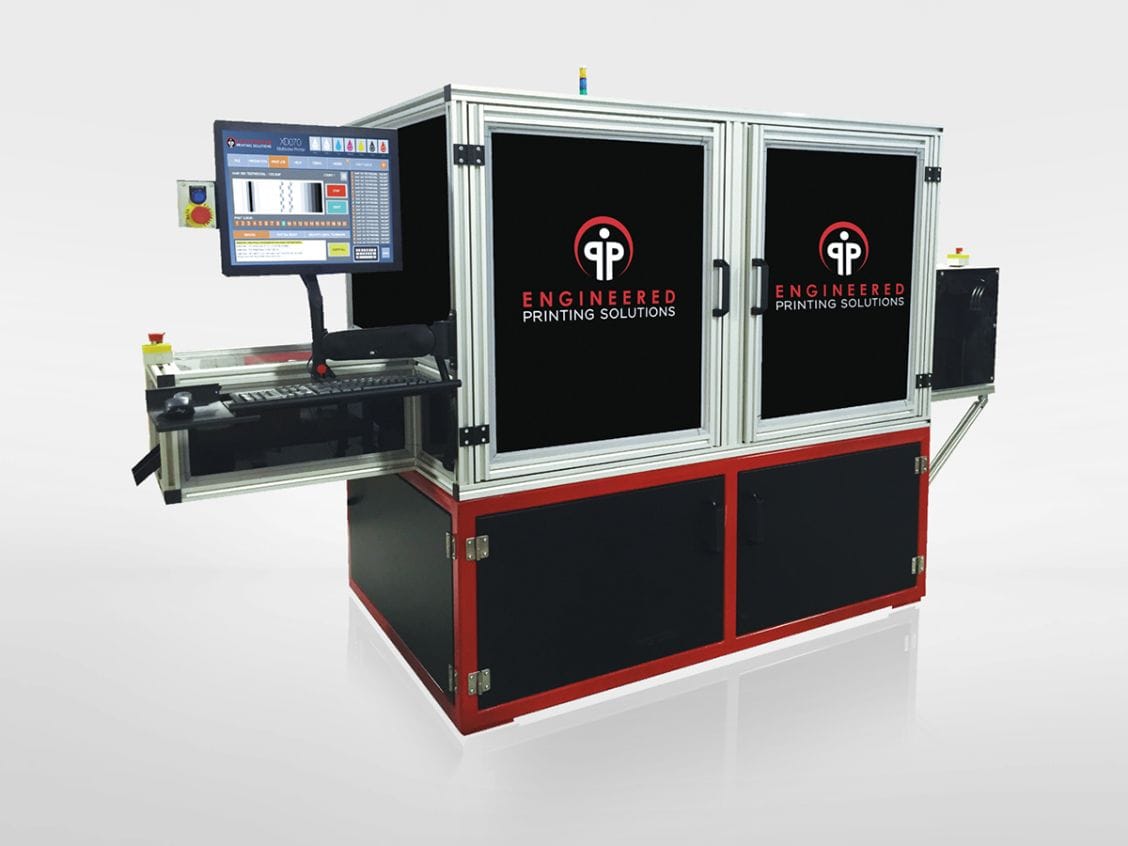

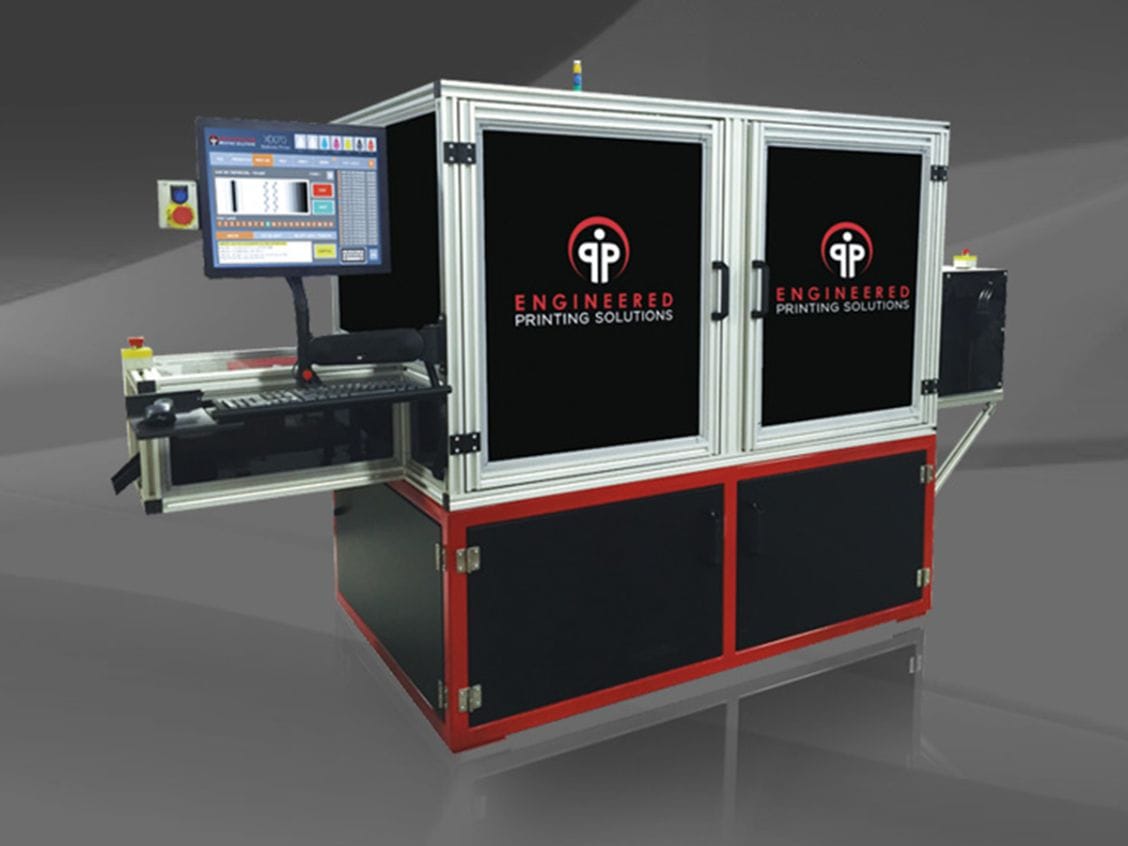

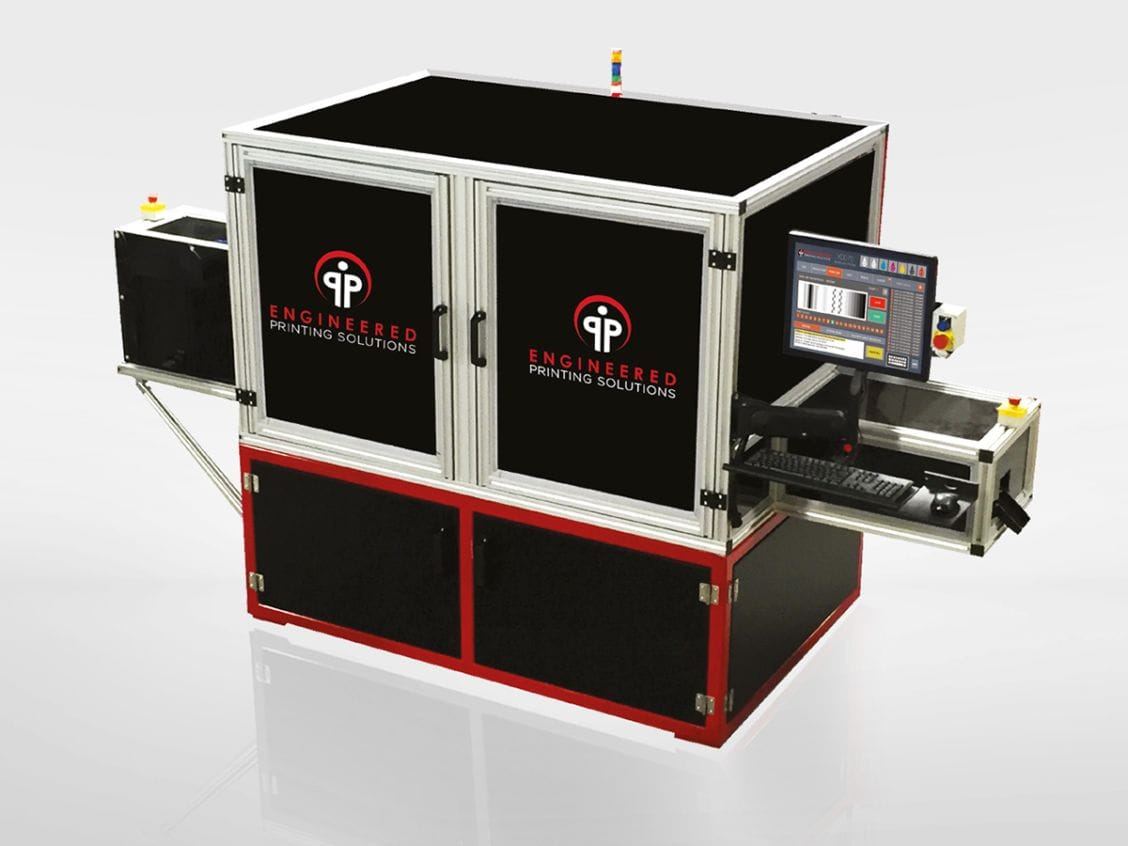

XD54 is a single pass industrial inkjet digital printing machine. Print directly on objects high-speed, with surprising results thanks to the drop on demand technology, which allows you to obtain high quality prints. It uses fast drying UV LED inks and is equipped with a RIP software for the management of all printing operations. Customizable with loading and unloading systems and other accessories on request.
- The single-pass UV inkjet digital printing machines are the ideal solution for industrial printing on flat or semi-flat objects. Fast thanks to the single pass system, print high quality images (up to 600 dpi) in four colors plus two white in continuous with a single pass.
- The LED UV ink used dries instantly, the machine stops are reduced to a minimum and the work changes fast and clean. On request are available loading and unloading systems, pre-treatment, customized supports for the pieces to be printed and vision and control systems.
Technical Specifications
| Print Features | XD54 |
|---|---|
| Standard print area | 2.13″ scalable to custom width |
| Max product height | 11.8″, more upon request |
| Maximum resolution | 600 dpi |
| Number of print heads | 6 WW+CMYK, more upon request |
| Ink type | UV LED (low odor/migration available) |
| Compatible file format | .jpg, .tiff, .bmp, .pdf |
| Software features | Job and print queue management, variable data available |
| Electrlcal requlrement | 240 VAC 3-phase 20 A 50-50 Hz |
| Compressed air | Min. 80 psi required |
| Ambient temperature | 68 °F to 86 °F |
| Humidity | 40-70% recommended |
| Physical space | 96″ x 48″ x 79″ |
| Print speed | Up to 50″ / Sec |
