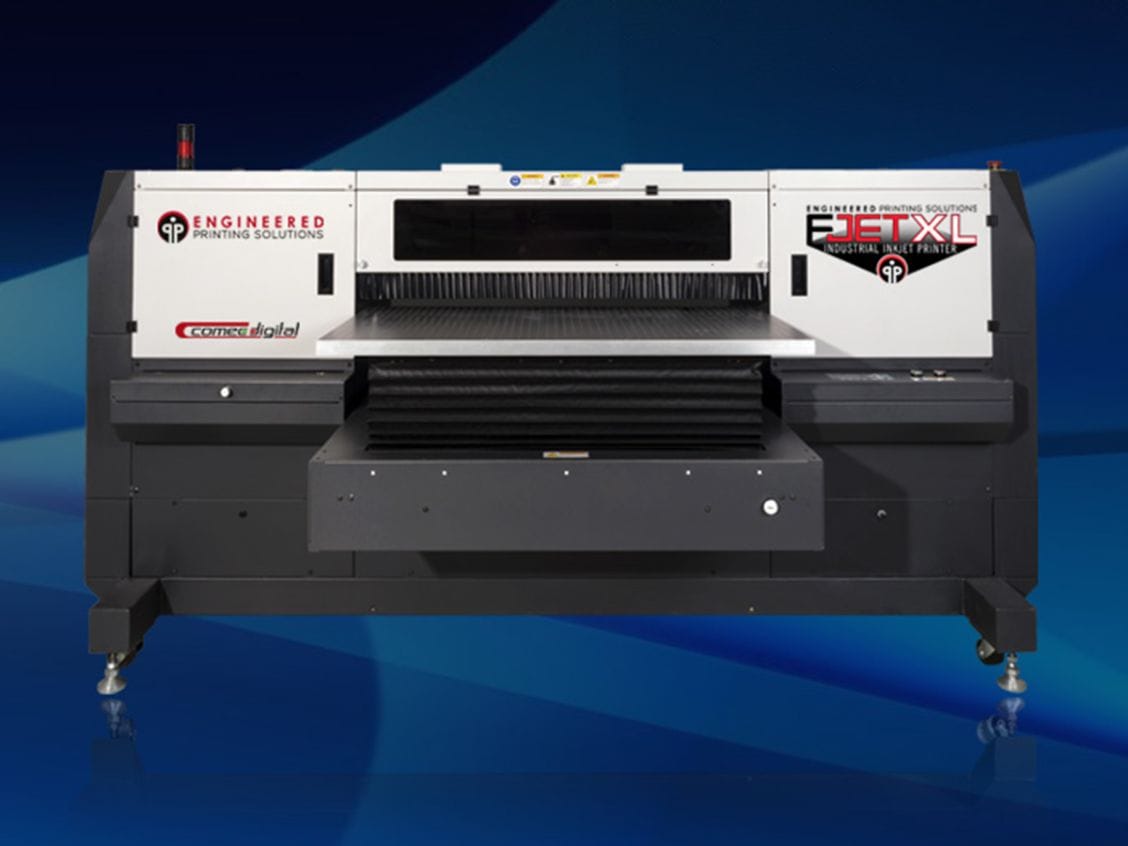

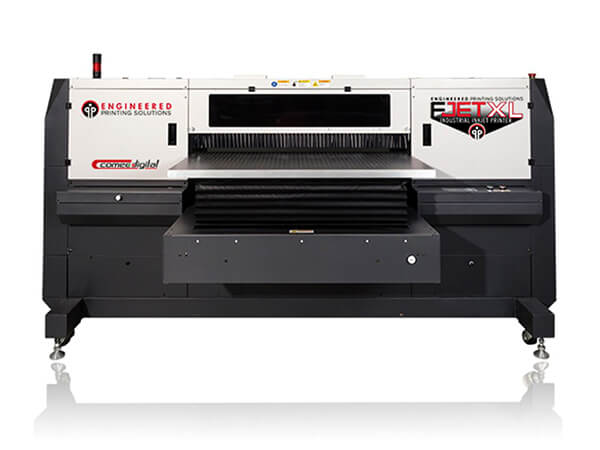

FJETXL is a UV LED digital inkjet printer able to print quickly and in high definition (up to 1200 dpi). Characterized by a very wide printing area (1060 x 610 mm), it uses fast drying UV LED inks and can print in both mono and bi-directional mode, thanks to the 2 UV lamps it is equipped with. Complete with RIP software for managing print jobs, it allows quick and clean job changes.
- The EPS flatbed inkjet printers allow high resolution printing directly on pieces (up to 1200 dpi) in a simple and fast way, transferring the concept of decoration on an industrial level.
- They use drop-on-demand piezoelectric heads and UV inks that dry instantly to print in process colors plus two white, primer available on request.
- The presence of 2 UV lamps makes it possible to print in bi-directional mode, much to the advantage of speed. The RIP software allows file upload and control of all operations, including variable data printing. Job changes are quick and clean.
- The machines can be customized with movement, loading and unloading systems, and vision systems. Ideal for printing on promotional items, prizes, cards, covers of smartphones, stationery, but also for industrial printing in the automotive, medical, cosmetic, tooling, household appliances, etc.
Technical Specifications
Printing Features | FJET XL |
---|---|
Maximum print area | 42″ x 24″ |
Max product height | 5.9″ |
Maximum resolution | 1200 dpi |
Number of print heads | 4 |
Ink type | UV |
Compatible Software | Adobe Illustrator & Photoshop, Corel Draw |
Control panel | LCD display panel |
Computer | Industrial PC with RIP software |
Images software | ColorPRINT Rip software Job and print queue management |
User interface | Printer Control Software (PCS) installed on host PC |
Ambient temperature | 68 °F to 86 °F |
Humidity | 40-70% recommended |
Physical space | 100″ x 52″ x 55″ |
Power | 220V AC single phase |
